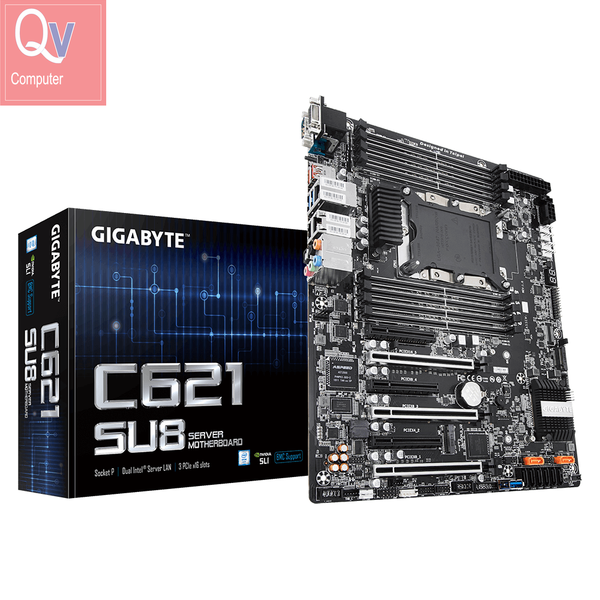

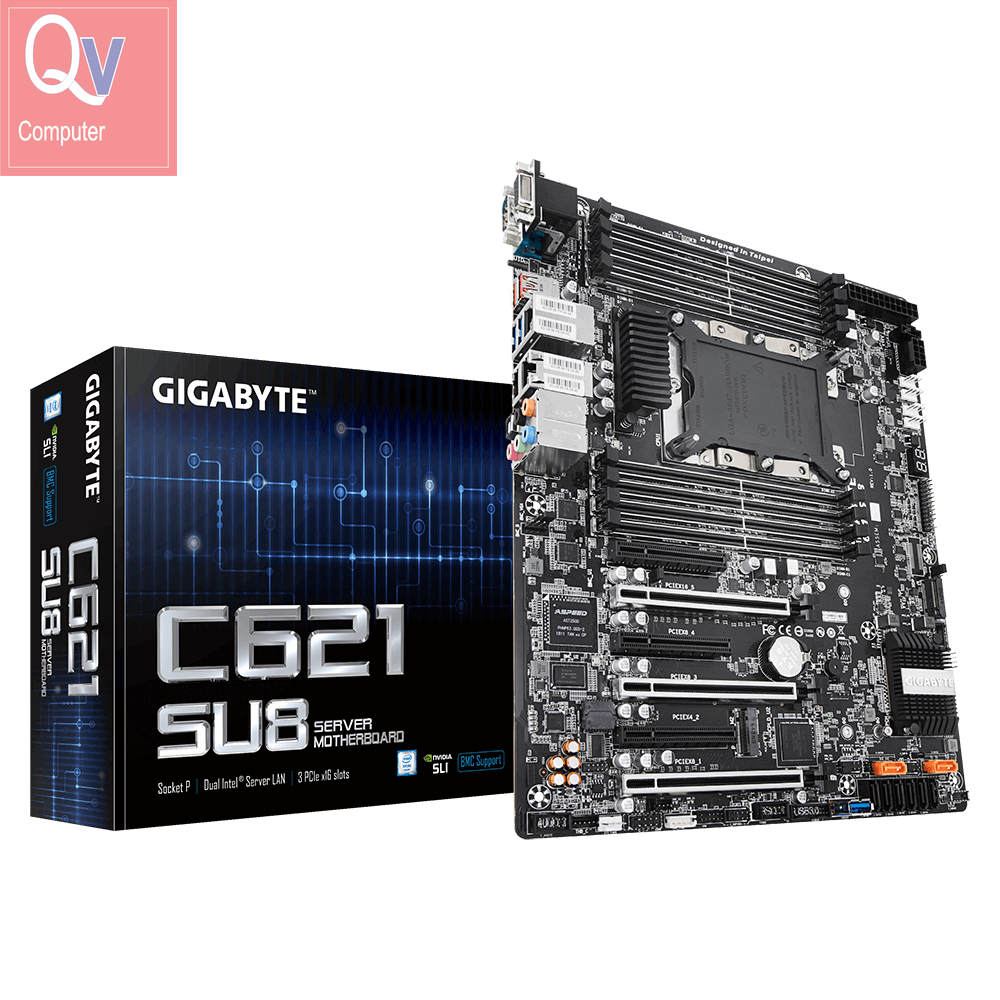

Mainboard Gigabyte C621-SU8

Thông số kỹ thuật

• CPU
  1. 1st and 2nd Generation Intel^® Xeon^® Scalable Processors, LGA 3647 Socket P (Narrow) with 2 UPI support of up to 10.4 GT/s, CPU TDP support up to 165W
• Chipset
  1. Intel^® C621 Chipset
• Memory
  1. 8 x DDR4 DIMM sockets supporting up to 1 TB of system memory
  2. 6 channel memory architecture
  3. Support for DDR4 2666 MHz memory modules if use a Skylake CPU
  4. Support for DDR4 2933 MHz memory modules if use a Cascade lake CPU
  5. Support for ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS memory modules
• Onboard Graphics
  ASPEED^® AST2500:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• Audio
  1. Realtek^® ALC1220-VB2 codec
     * The back panel line out jack supports DSD audio
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. 1 x Realtek RTL8211E chip (10/100/1000 Mbit) (LAN1)
  2. 2 x Intel^® 210AT GbE LAN chips (10/100/1000 Mbit) (LAN2, LAN3)
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16_5)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_3)
  3. 2 x PCI Express x8 slots, running at x8 (PCIEX8_4, PCIEX8_6)
  4. 1 x PCI Express x8 slot, running at x4 (PCIEX4_2)
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Storage Interface
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) (PCIEX2_M2)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (PCIEX4_M2)
  3. 2 x SATA 6Gb/s connectors (S-SATA0~1)
  4. 6 x SATA 6Gb/s connectors (I-SATA0~5)
  5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
• USB
  Chipset+ ASMedia^® USB 3.1 Gen 2 Controller:

  1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel

  Chipset:

  1. 5 x USB 3.1 Gen 1 ports (2 ports on the back panel, 1 port onboard, 2 ports available through the internal USB header)
  2. 2 x USB 2.0/1.1 ports available through the internal USB header
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 6 x system fan headers
  5. 8 x SATA 6Gb/s connectors
  6. 2 x SATA DOM power headers
  7. 2 x M.2 Socket 3 connectors
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
  11. 1 x USB 3.1 Gen 1 header
  12. 1 x USB 2.0/1.1 header
  13. 1 x Thunderbolt™ add-in card connector
  14. 1 x Trusted Platform Module(TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  15. 1 x serial port header
  16. 1 x chassis intrusion header
  17. 1 x Clear CMOS jumper
  18. 3 x SATA SGPIO headers
  19. 1 x BMC_VGA jumper
  20. 1 x BMC_WATCHD jumper
  21. 1 x wake on LAN header
  22. 1 x IPMB connector
  23. 1 x SMB jumper
  24. 1 x VRM SMB Clock jumper
  25. 1 x VRM SMB Data jumper
  26. 1 x Intel^® VROC Upgrade Key header
  27. 1 x NVMe SMBus (I2C) header
  28. 1 x buzzer
  29. 1 x NVMe SMBUS Control header
• Back Panel Connectors
  1. 1 x D-Sub port
  2. 1 x serial port
  3. 1 x UID button
  4. 2 x USB 3.1 Gen 2 Type-A ports (red)
  5. 2 x USB 3.1 Gen 1 ports
  6. 3 x RJ-45 ports
  7. 1 x optical S/PDIF Out connector
  8. 5 x audio jacks
• I/O Controller
  1. ASPEED^® AST2500 BMC chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan speed control
     * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
