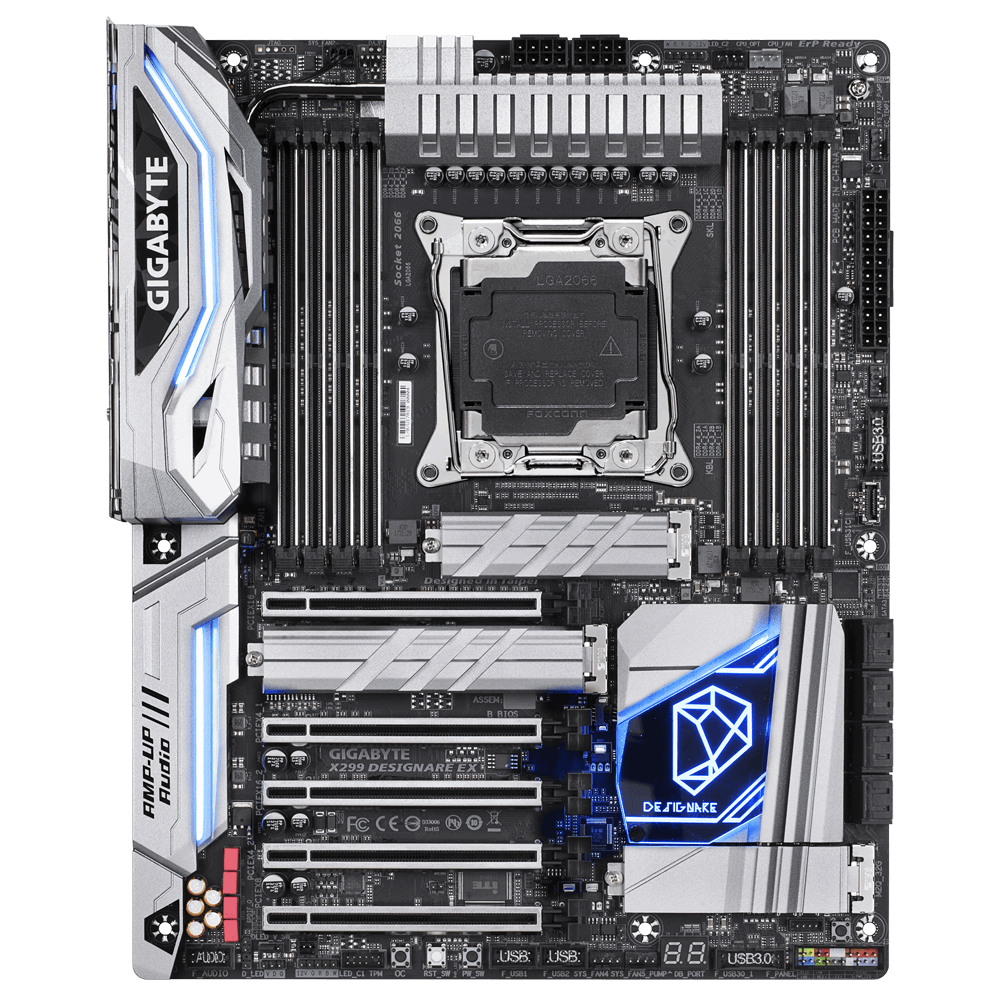

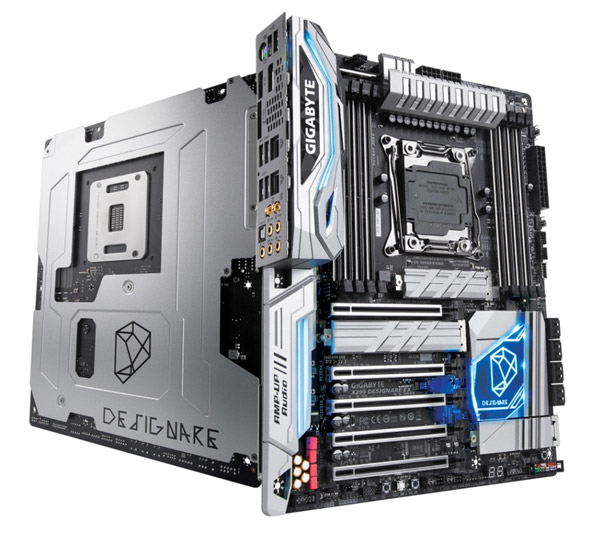

- PU
- Support for Intel® Core™ X series processors in the LGA2066 package
- L3 cache varies with CPU
- Chipset
- Intel® X299 Express Chipset
- Memory
- 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
* Support for up to 512 GB of system memory when using Registered DIMMs.
* Supported when using a 44-lane or 28-lane CPU (6-core or above). - 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
* Supported when using a 16-lane CPU (4-core). - 4 channel memory architecture.
* Supported when using a 44-lane or 28-lane CPU (6-core or above). - Dual channel memory architecture.
Supported when using a 16-lane CPU (4-core). - Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
- Support for non-ECC Un-buffered DIMM memory modules
- Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
- Support for Extreme Memory Profile (XMP) memory modules
- 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
- Onboard GraphicsIntegrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:
- 2 x Intel® Thunderbolt™ 3 connectors, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
* Support for DisplayPort 1.2 version.
- 2 x Intel® Thunderbolt™ 3 connectors, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
- Audio
- Realtek® ALC1220 codec
- Support for Sound BlasterX 720°
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
- LAN
- 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
- Wireless Communication module
- Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
- Support for 11ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
- Expansion Slots
- 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
- 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
* The PCIEX4_1 slot shares bandwidth with the M2M_32G connector. The PCIEX4_1 slot becomes unavailable when a device is installed in the M2M_32G connector.
* Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.
