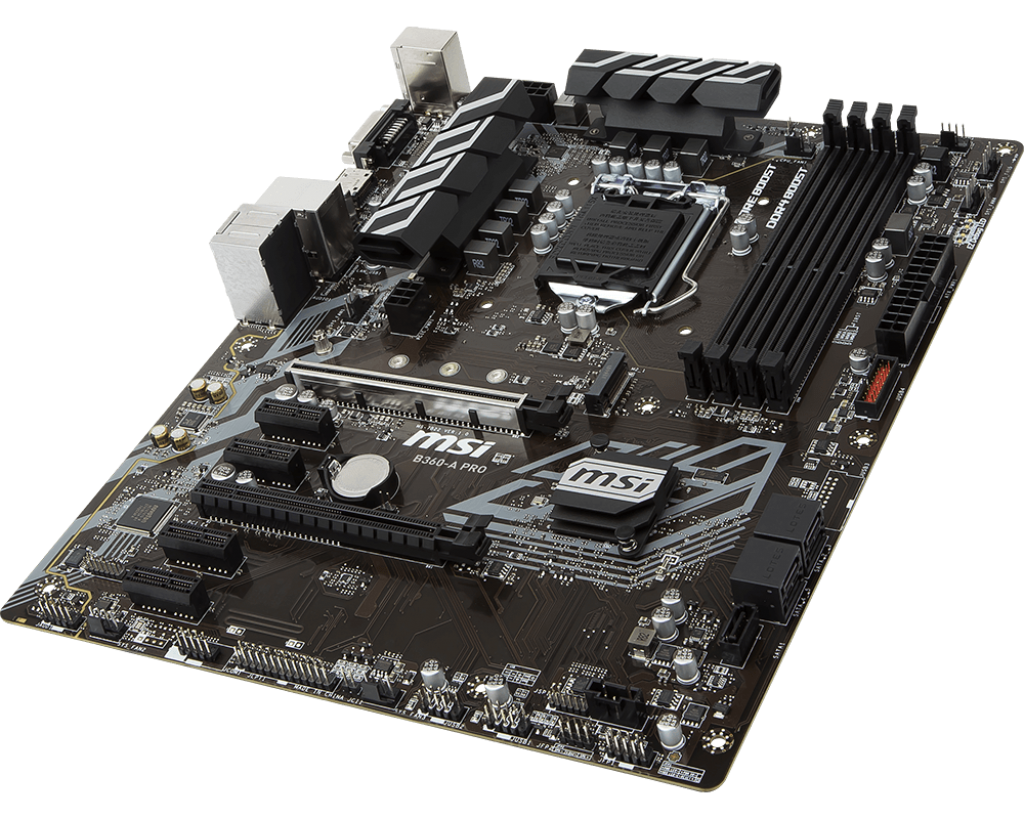

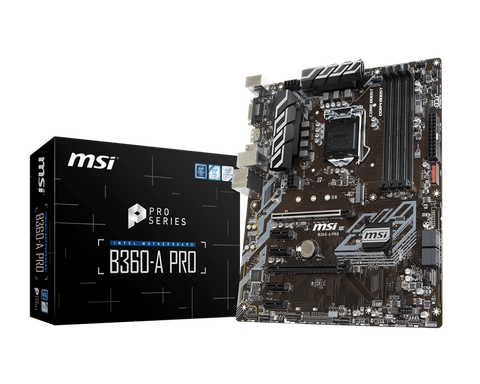

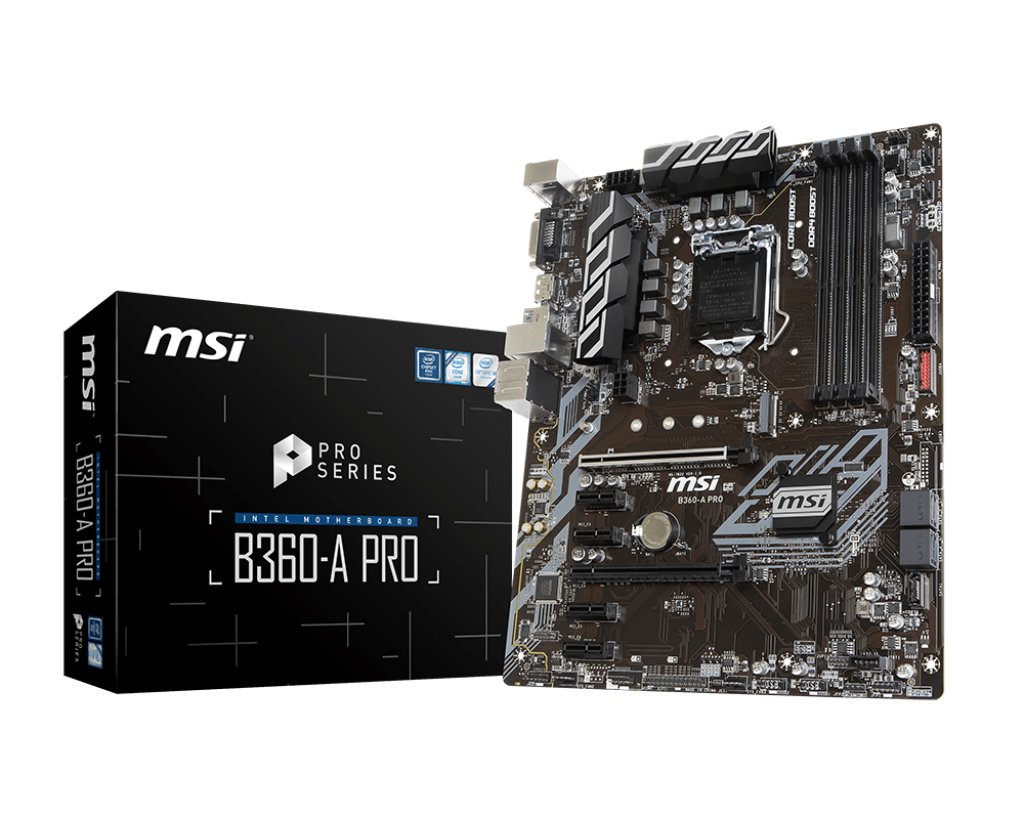

Tên gọi | MSI B360-A PRO |
CPU hỗ trợ |
Intel® Socket 1151 for 8th Generation Core™ Processors
|
Chipset / Socket | Intel® B360 |
Bộ nhớ (RAM) | - Dual Channel DDR4 Memory Technology
- 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0 |
Công nghệ đa GPU | • Không hỗ trợ |
Khe cắm mở rộng | • 2 x PCI Express 3.0 x16 Slots
• 4 x PCI Express 3.0 x1 Slots |
LAN / Wireless | • Intel I219-V Gigabit LAN controller |
Âm thanh | • Realtek ALC892 Audio Codec |
Cổng kết nối (Internal) | • 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 6-pin ATX PCIe power connector
• 5 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connectors (supports additional 2 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water pump fan connector
• 5 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x Series port connector
• 1 x Parallel port connector
• 1 x 5050 RGB LED strip 12V connector
• 1 x TPM module connector
• 1 x Thunderbolt Add-on Card Connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper |
Cổng kết nối (Back Panel) | • PS/2 Combo Port
• VGA Port
•USB 3.1 Gen1
• LAN Port
• HD Audio Connectors
• USB 2.0 Port
• USB 3.1 Gen1 |
Công nghệ độc quyền | • DDR4 Boost
• Turbo M.2
• PCI-E Steel Armor
• Heavy plated heatsinks
• Audio Boost |
Phụ kiện đi kèm | - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets |
Hệ điều hành khuyến nghị | • Windows® 10 64-bit |
Chuẩn kích cỡ | • ATX Form Factor |
