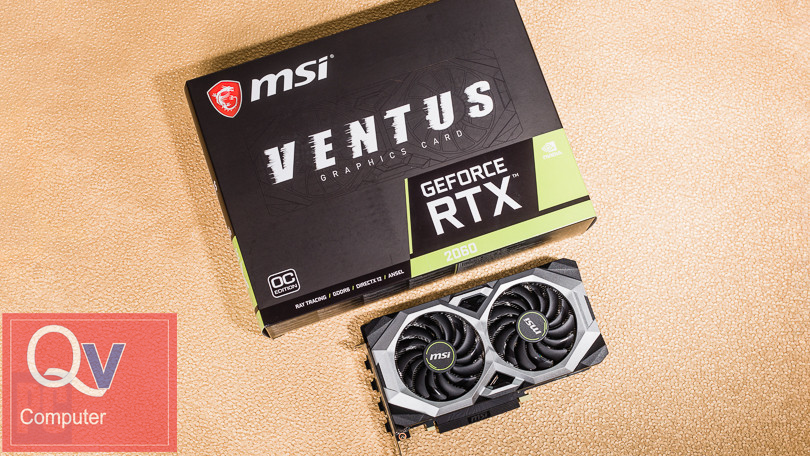

MODEL NAME | GeForce® RTX 2060 SUPERTM VENTUS OC |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce® RTX 2060 SUPER™ |
| INTERFACE | PCI Express x16 3.0 |
| CORES | 2176 Units |
| CORE CLOCKS | Boost:1665 MHz |
| MEMORY SPEED | 14 Gbps |
| MEMORY | 8GB GDDR6 |
| MEMORY BUS | 256-bit |
| OUTPUT | DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 |
| HDCP SUPPORT | 2.2 |
| POWER CONSUMPTION | 175W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 550W |
| CARD DIMENSION(MM) | 231 x 128x 42 mm |
| WEIGHT (CARD / PACKAGE) | 758 g / 1198 g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.5 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION |
